Sanity-check visualisation for detected scope and design

Source: R/detect_plot.R
plot_design_summary.Rd

Plots the structure that drove the detect_design() verdict. A detected MET uses a compact environment-coverage overview by default. Set environment to draw one selected environment. A single-trial panel depends on the detected design class:

Usage

plot_design_summary(
  x,
  df,
  engine = c("base", "ggplot2"),
  environment = NULL,
  ...
)

Arguments

x

A design_summary object from detect_design().

df

The data frame that was passed to detect_design(). It is used to draw replication tiles, spatial layouts, and the NA-pattern. The data are deliberately not stored in the summary.

engine

"base" (default) or "ggplot2". The latter requires ggplot2 and falls back to "base" with a warning if unavailable.

environment

Optional single environment label. For a detected MET, the default is a compact all-environment overview. Supplying a label draws the selected environment's field layout or legacy design diagnostic.

...

Ignored.

Value

The input x, invisibly. Called for the plot side-effect.

Details

  • CRD, factorial, none -> frequency-of-treatment + NA-pattern.

  • RCBD, IBD/alpha-lattice -> treatment x block replication tile.

  • row-column -> spatial layout tile (row x col, fill = treatment).

  • split-plot -> factor-nesting tree + within-block replication.

Output is purely diagnostic. Do not use it as a publication figure (use desplot::desplot() or ggplot2-based packages for that).

Examples

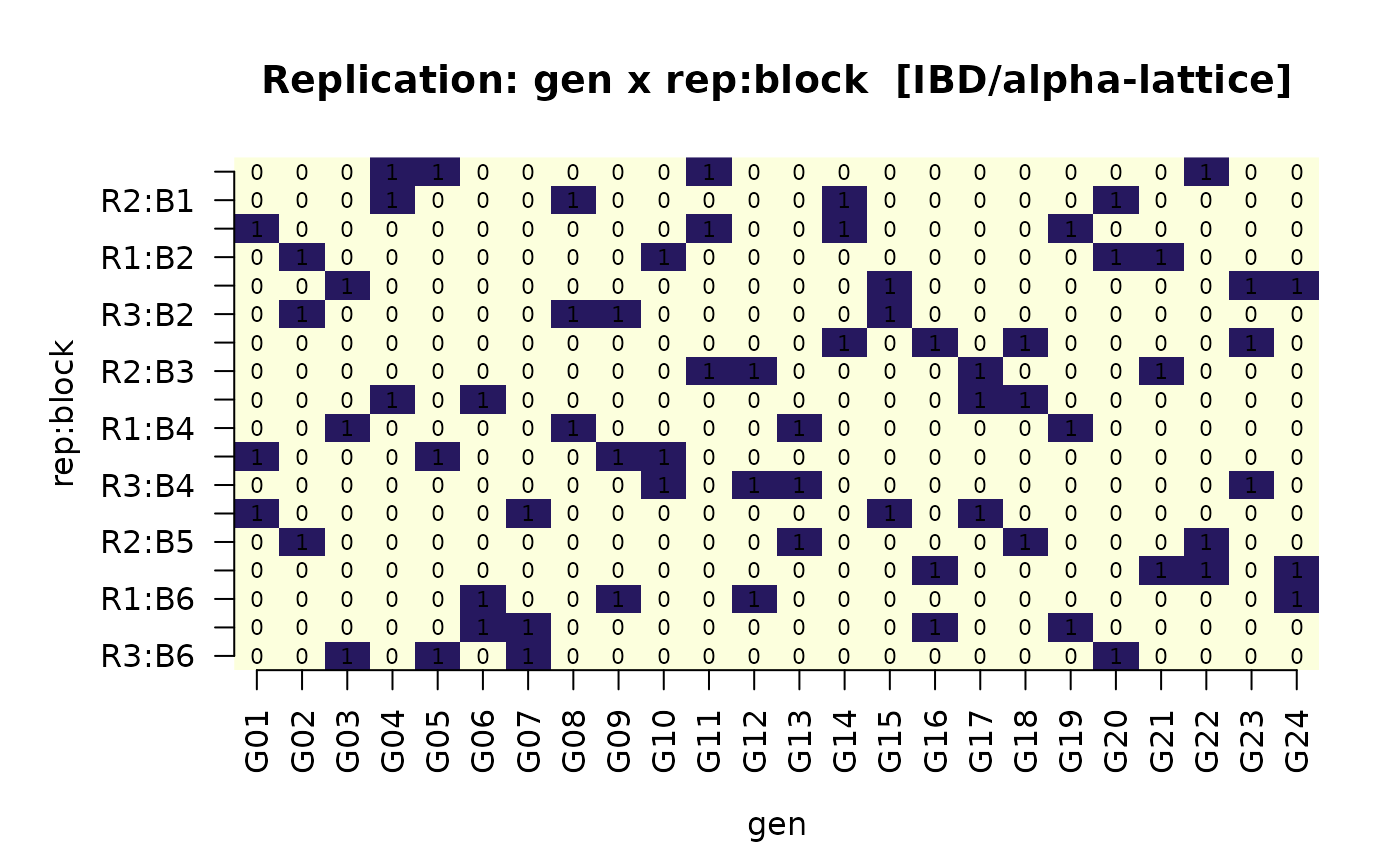

if (requireNamespace("agridat", quietly = TRUE)) {
  d <- agridat::john.alpha
  ds <- detect_design(d)
  plot(ds, df = d)
}

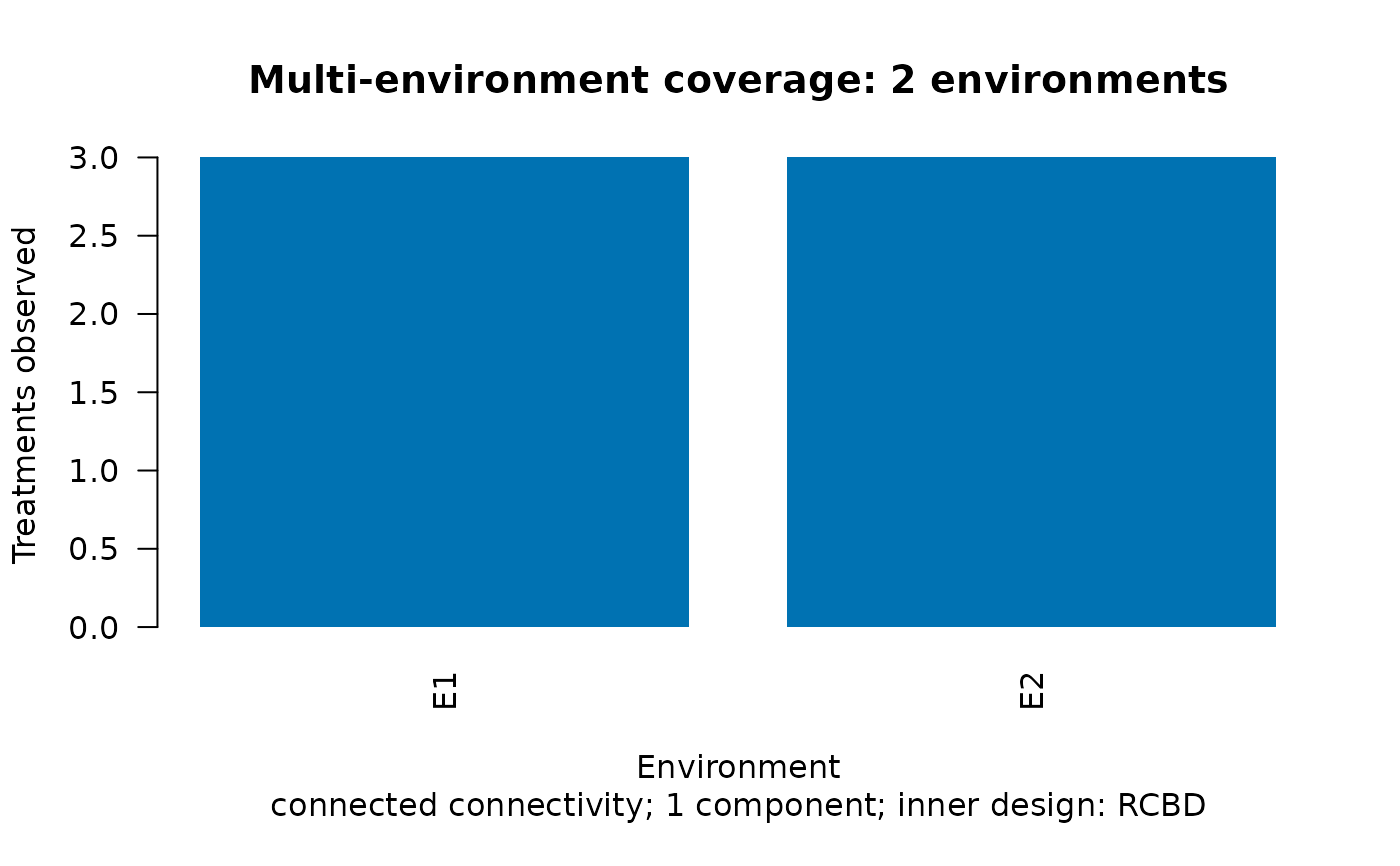

met <- expand.grid(
  env = factor(c("E1", "E2")),
  rep = factor(seq_len(2L)),
  gen = factor(c("G1", "G2", "G3"))
)
met$yield <- seq_len(nrow(met))
met_design <- detect_design(met, env = "env")
plot(met_design, df = met)
