Calibrating APSIM Wheat with PESTO: a case study

Source: vignettes/apsim-case-study.Rmd
apsim-case-study.Rmd

Why this study

PESTO’s flagship partner is APSIM, the agricultural-systems simulator (see the Calibrating APSIM with PESTO vignette for the coupling mechanics). This case study is the calibration counterpart: a complete, reproducible demonstration that PESTO’s iterative ensemble smoother (IES) recovers known APSIM parameters and quantifies their uncertainty.

It is deliberately a synthetic-truth recovery experiment (an OSSE, or “twin experiment”): we fix known-true APSIM parameters, simulate per-season wheat yields, add measurement noise, and then try to recover the truth from the noisy yields. Because the truth is known by construction, correctness is verifiable without any field data – the cleanest way to show a calibration method works before confronting real observations. The forward model is the bundled APSIM Wheat example (a multi-decade run at a single site), driven in-process through apsim_callback().

This study has two parts. Part 1 (the bulk below) is that synthetic-truth recovery. Part 2 then calibrates physiological parameters to real observed wheat biomass and cross-checks PESTO against the established apsimx optimiser.

rds <- system.file("extdata", "apsim_case_study",
                   "apsim_wheat_calibration_result.rds", package = "PESTO")
if (!nzchar(rds)) {
  rds <- file.path("..", "inst", "extdata", "apsim_case_study",
                   "apsim_wheat_calibration_result.rds")
}
R <- readRDS(rds)
spec <- R$spec; pnm <- R$pnm

The results below are frozen real outputs of the calibration, shipped with the package and loaded here; APSIM is not run at build time (it is an external simulator, absent on CRAN check farms). They were produced by APSIM 2026.5.8046.0 via apsimx 2.8.235, PESTO 0.8.0.9000, seed 20260628. The runnable driver is system.file("case_studies/apsim_wheat_calibration.R", package = "PESTO").

The calibration target

Three parameters are estimated, chosen from a sensitivity screen of the real model to span the identifiability spectrum: two strong, mechanistically distinct levers (soil water and nitrogen) and one deliberately weak lever.

tt <- data.frame(
  Parameter = pnm,
  Role  = vapply(spec, `[[`, "", "role"),
  Unit  = vapply(spec, `[[`, "", "unit"),
  Truth = vapply(spec, `[[`, 0,  "truth"),
  `Prior range` = sprintf("%g -- %g",
                          vapply(spec, `[[`, 0, "lo"),
                          vapply(spec, `[[`, 0, "hi")),
  check.names = FALSE, row.names = NULL
)
knitr::kable(tt, caption = "Calibration target: known truth and uniform prior.")
Calibration target: known truth and uniform prior.
Parameter Role Unit Truth Prior range
CN2Bare soil runoff (water limitation) curve number 73 50 – 95
FertN fertiliser nitrogen (N limitation) kg N/ha 160 40 – 260
SowingDepth sowing depth (weak lever) mm 30 10 – 90

The synthetic observations

The truth run produces one wheat yield per season; we add Gaussian measurement noise (SD 250 kg/ha) and split the seasons into a calibration set (used in the fit) and a held-out validation set (used only to test out-of-sample prediction).

od <- data.table(
  year  = R$season_year,
  truth = R$y_truth,
  obs   = R$y_obs_all,
  set   = ifelse(seq_along(R$y_truth) %in% R$cal_idx, "calibration", "validation")
)
ggplot(od, aes(year, obs, colour = set)) +
  geom_line(aes(y = truth), colour = "grey60", linewidth = 0.3) +
  geom_point(size = 1.3) +
  scale_colour_manual(values = c(calibration = PAL[1], validation = PAL[2])) +
  labs(x = NULL, y = "Wheat yield (kg/ha)", colour = NULL,
       title = "Synthetic observations: truth (grey) + measurement noise") +
  theme_minimal(base_size = 11)

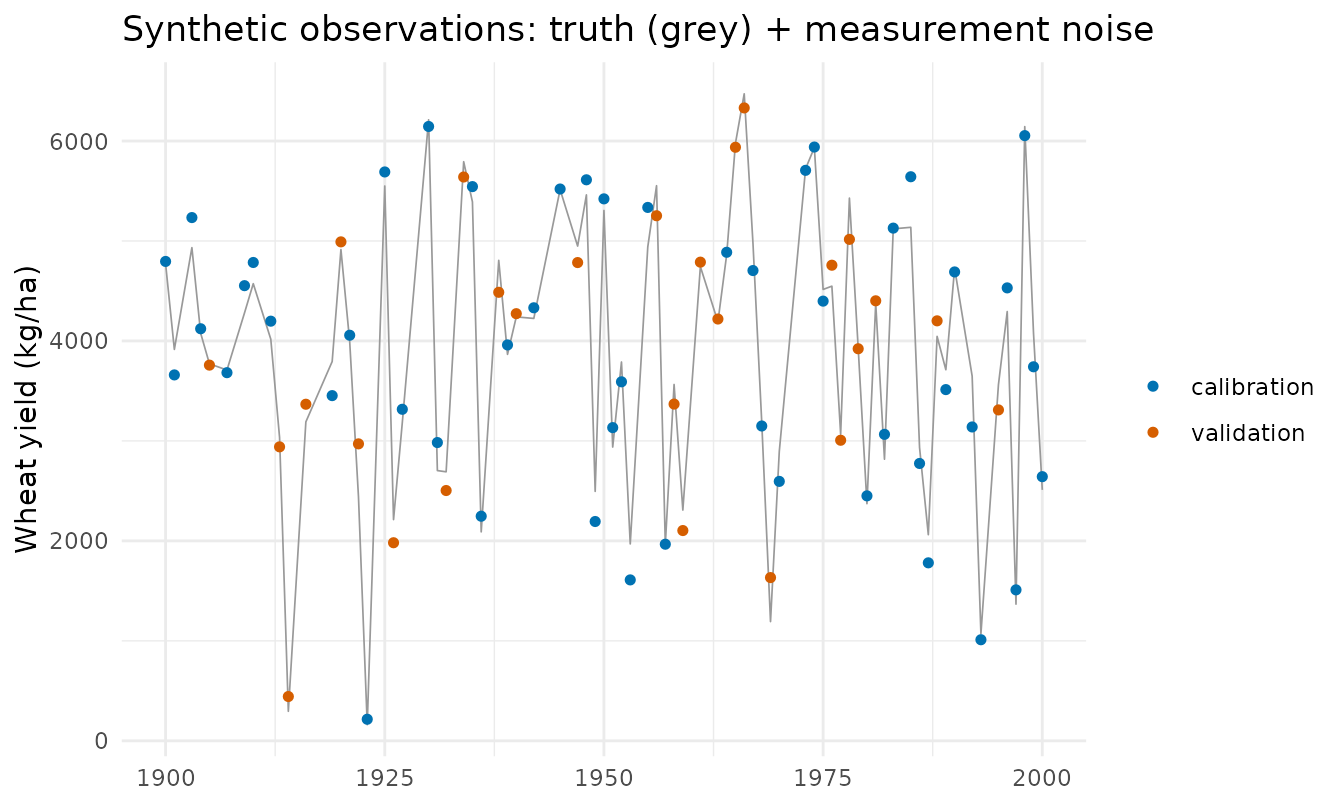

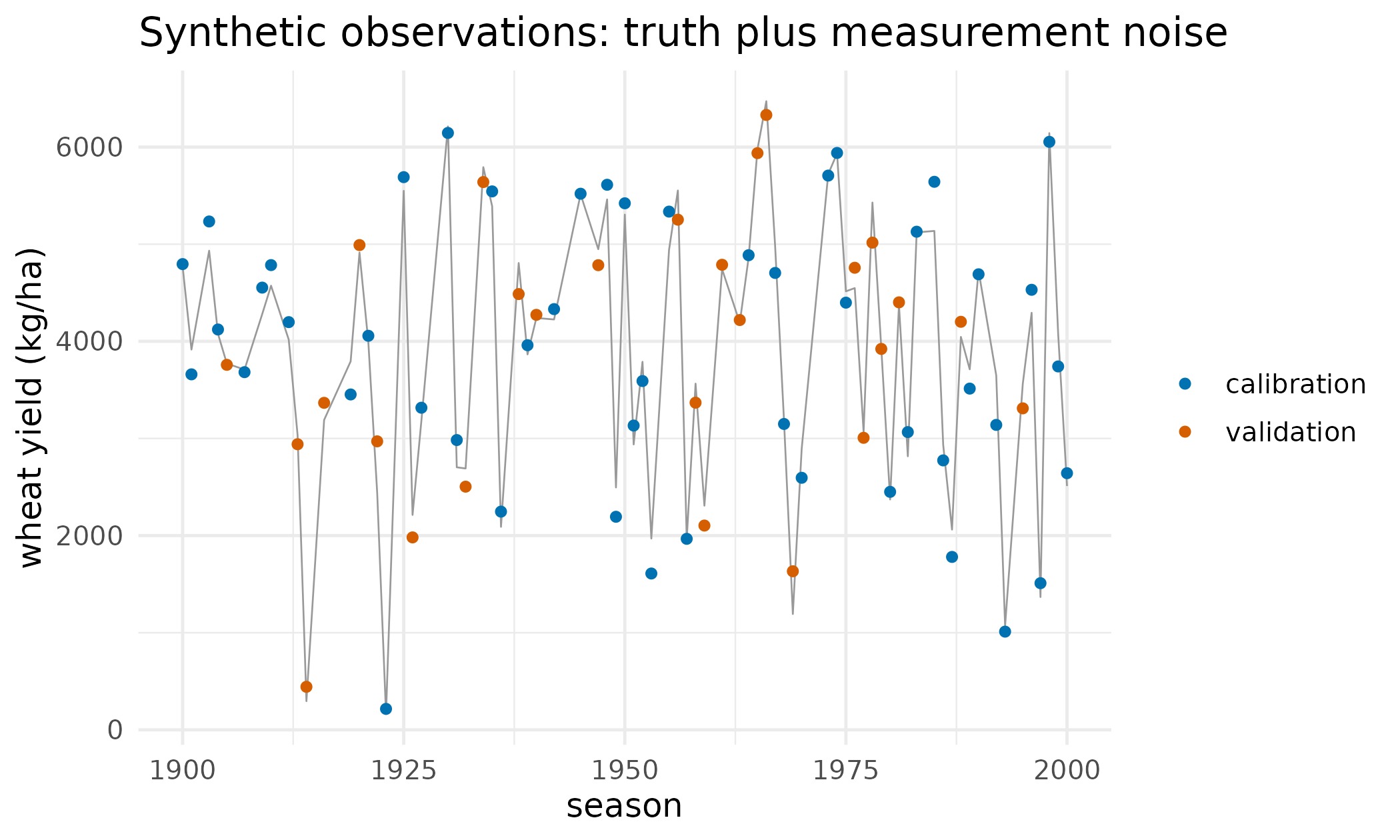

Per-season wheat yield across the multi-decade run: the noise-free truth and the noisy synthetic observations, with calibration and held-out validation seasons distinguished.

The calibration

The forward model is APSIM itself, wrapped so a parameter matrix maps to a matrix of simulated yields; the IES then conditions the ensemble on the calibration-season observations. This is the entire calibration call (shown for reference; the frozen fit is loaded above):

fm <- apsim_callback(
  template  = "Wheat.apsimx",
  param_map = list(
    CN2Bare     = ".Simulations.Simulation.Field.Soil.SoilWater.CN2Bare",
    FertN       = ".Simulations.Simulation.Field.Fertilise at sowing.Amount",
    SowingDepth = ".Simulations.Simulation.Field.Sow using a variable rule.SowingDepth"
  ),
  output_extractor = function(sim) as.numeric(sim$Yield)
)
# Run APSIM realisations in parallel; hold out validation seasons via obs_sd.
fm  <- pesto_forward_model(fm, parallel = "multicore")
fit <- pesto_ies_callback(fm, prior_ensemble = prior, obs = obs_all,
                          obs_sd = sd_vec, noptmax = 6)

Convergence

plot_phi(R$fit) +
  ggtitle("IES convergence: misfit (phi) by iteration")

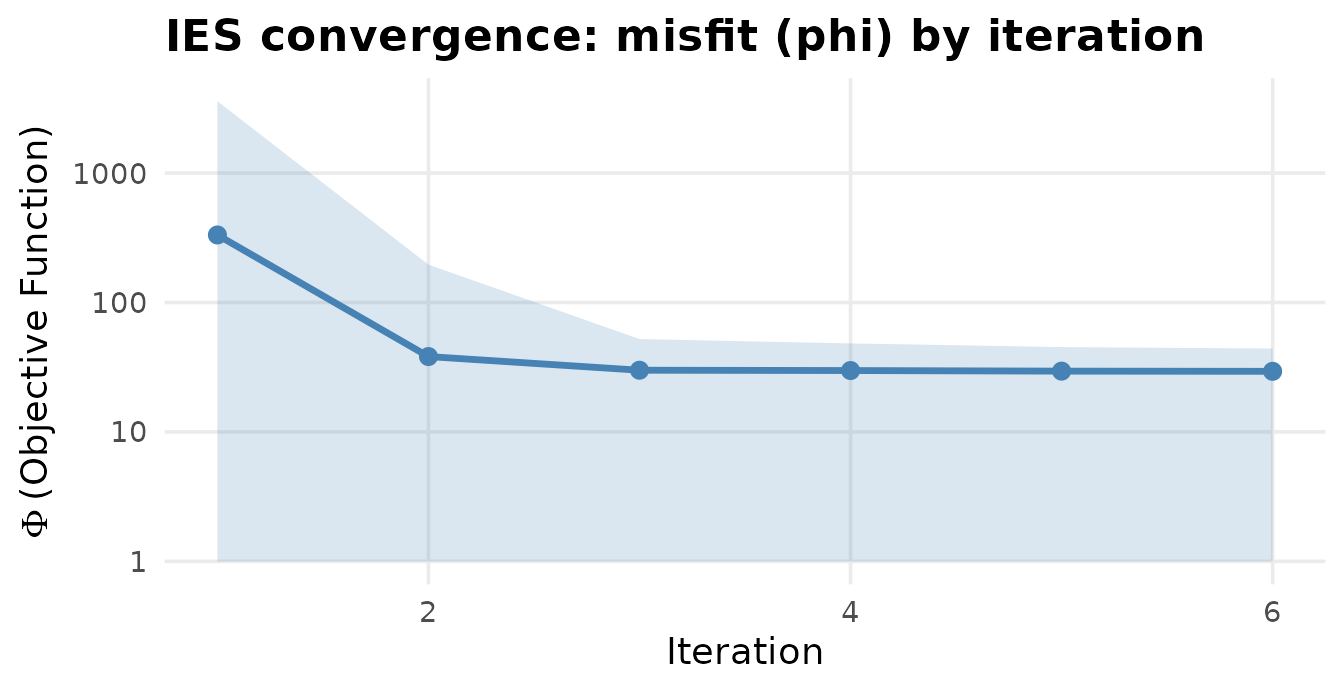

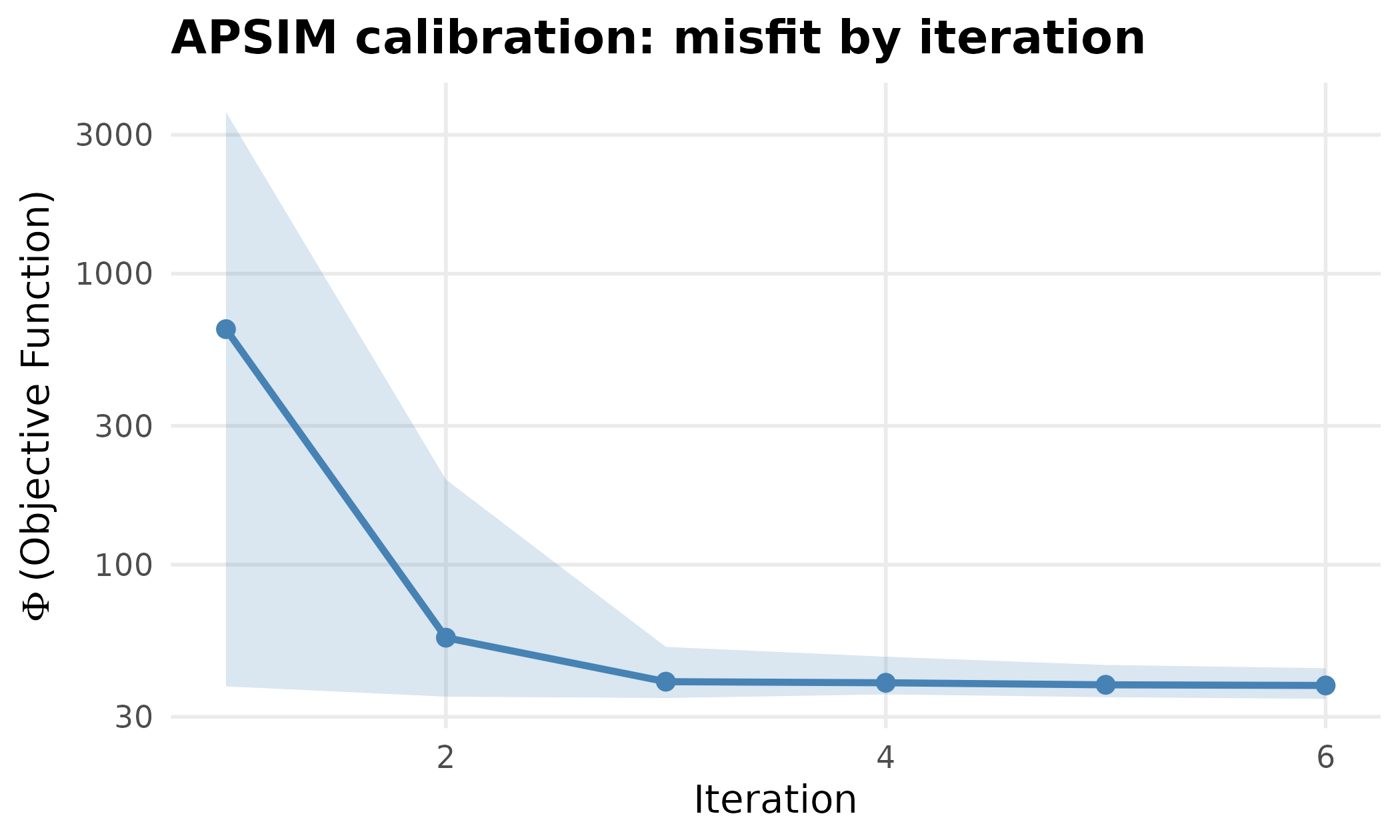

Objective-function (phi) trajectory over IES iterations: the ensemble's misfit drops sharply in the first iterations and then plateaus.

Parameter recovery

rec <- rbindlist(lapply(pnm, function(p) {
  q <- stats::quantile(R$post[, p], c(.05, .5, .95), na.rm = TRUE)
  data.table(Parameter = p, Truth = spec[[p]]$truth,
             `Posterior mean` = round(mean(R$post[, p], na.rm = TRUE), 1),
             `5%` = round(q[1], 1), `95%` = round(q[3], 1),
             `Truth in 90% CI` = ifelse(spec[[p]]$truth >= q[1] &
                                        spec[[p]]$truth <= q[3], "yes", "no"))
}))
knitr::kable(rec, caption = "Recovery of the known truth from noisy yields.")
Recovery of the known truth from noisy yields.
Parameter Truth Posterior mean 5% 95% Truth in 90% CI
CN2Bare 73 75.3 72.0 91.6 yes
FertN 160 162.4 157.2 169.1 yes
SowingDepth 30 35.1 28.9 40.1 yes
dens <- rbindlist(lapply(pnm, function(p) rbind(
  data.table(Parameter = p, value = R$prior[, p],     dist = "prior"),
  data.table(Parameter = p, value = R$post[, p],      dist = "posterior")
)))
truth_dt <- data.table(Parameter = pnm,
                       truth = vapply(spec, `[[`, 0, "truth"))
ggplot(dens, aes(value, fill = dist)) +
  geom_density(alpha = 0.5, colour = NA) +
  geom_vline(data = truth_dt, aes(xintercept = truth),
             linetype = "dashed", linewidth = 0.5) +
  facet_wrap(~ Parameter, scales = "free") +
  scale_fill_manual(values = c(prior = "grey70", posterior = PAL[1])) +
  labs(x = NULL, y = NULL, fill = NULL,
       title = "Prior to posterior; dashed line = truth") +
  theme_minimal(base_size = 10)

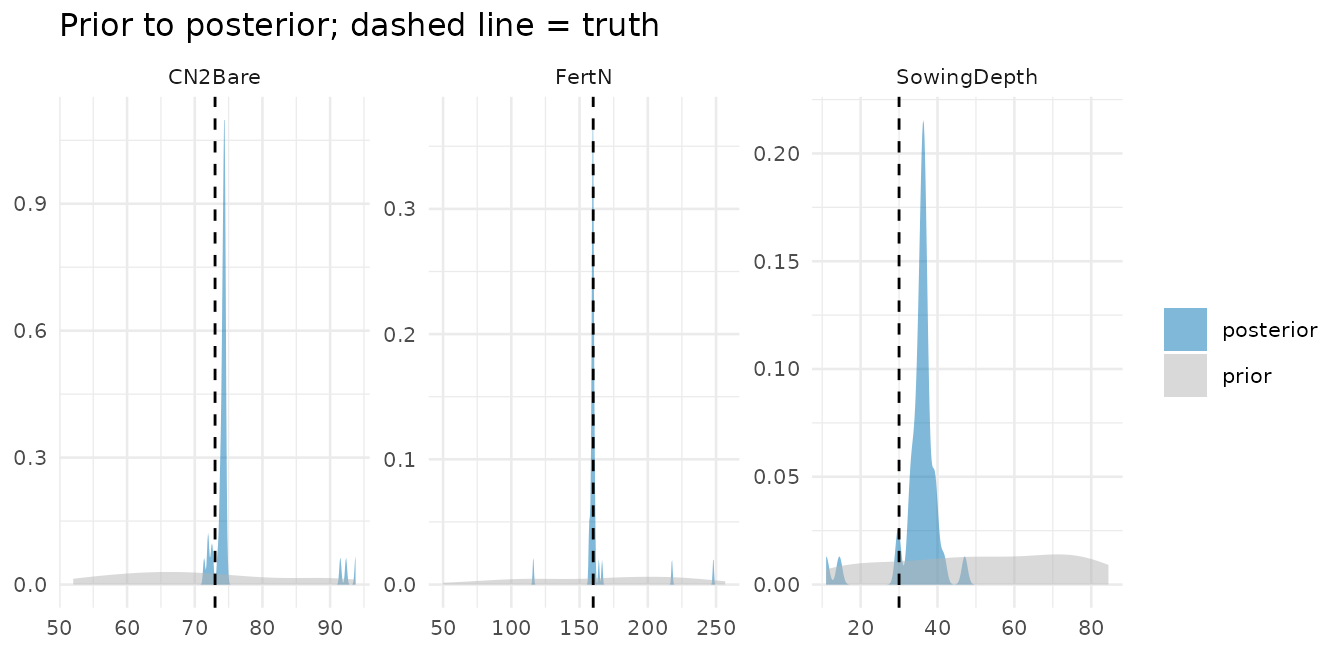

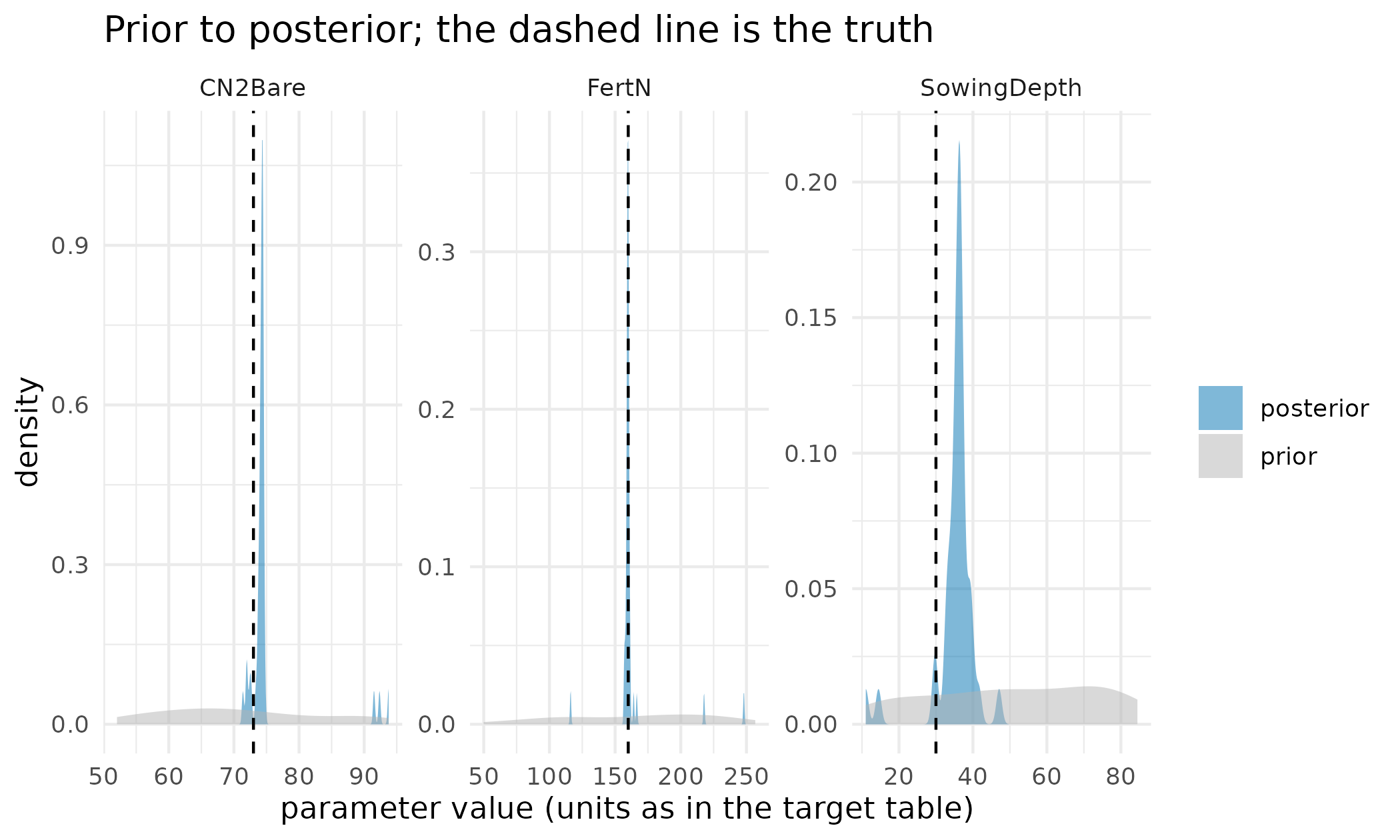

Prior versus posterior densities for each parameter with the true value marked: the two strong parameters collapse tightly onto the truth, while the weak parameter's posterior stays broad.

Identifiability – what the data can constrain

A parameter is well-identified when conditioning on the data collapses its spread far below the prior. The ratio of posterior to prior standard deviation makes this explicit:

idr <- data.table(
  Parameter = pnm,
  ratio = vapply(pnm, function(p)
    stats::sd(R$post[, p], na.rm = TRUE) / stats::sd(R$prior[, p]), 0)
)
ggplot(idr, aes(stats::reorder(Parameter, ratio), ratio)) +
  geom_col(fill = PAL[1], width = 0.6) +
  geom_hline(yintercept = 1, linetype = "dotted") +
  coord_flip() +
  labs(x = NULL, y = "posterior SD / prior SD (lower = better identified)",
       title = "Identifiability from the observed yields") +
  theme_minimal(base_size = 11)

Posterior-to-prior standard-deviation ratio by parameter: low for the two strong parameters (well constrained), near one for the weak parameter (barely constrained).

The yields strongly constrain soil runoff (CN2Bare) and fertiliser nitrogen (FertN); sowing depth is barely identifiable from yield alone, and PESTO’s diagnostics say so rather than returning a falsely confident estimate. That is the value of ensemble UQ: it reports what the data can and cannot teach you.

Out-of-sample validation – and the under-dispersion caveat

Using the posterior ensemble to predict the held-out seasons tests genuine out-of-sample skill. The key finding is that the raw ensemble’s predictive band is too narrow:

oe <- R$obs_ensemble
band <- function(mat) {
  data.table(year = R$season_year[R$val_idx],
             truth = R$y_truth[R$val_idx],
             lo = apply(mat[, R$val_idx, drop = FALSE], 2L, stats::quantile, .05, na.rm = TRUE),
             hi = apply(mat[, R$val_idx, drop = FALSE], 2L, stats::quantile, .95, na.rm = TRUE))
}
cov_of <- function(b) mean(b$truth >= b$lo & b$truth <= b$hi)
b_base <- band(oe); b_base[, panel := sprintf("raw ensemble (%.0f%% covered)", 100 * cov_of(b_base))]
panels <- list(b_base)
if (!is.null(R$inflation)) {
  b_inf <- band(R$inflation$obs_ensemble)
  b_inf[, panel := sprintf("with RTPS inflation (%.0f%% covered)", 100 * cov_of(b_inf))]
  panels <- list(b_base, b_inf)
}
bd <- rbindlist(panels)
ggplot(bd, aes(year)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), fill = PAL[1], alpha = 0.25) +
  geom_point(aes(y = truth), colour = PAL[2], size = 1.3) +
  facet_wrap(~ panel) +
  labs(x = NULL, y = "Held-out yield (kg/ha)",
       title = "Held-out seasons: 90% predictive band vs truth") +
  theme_minimal(base_size = 10)

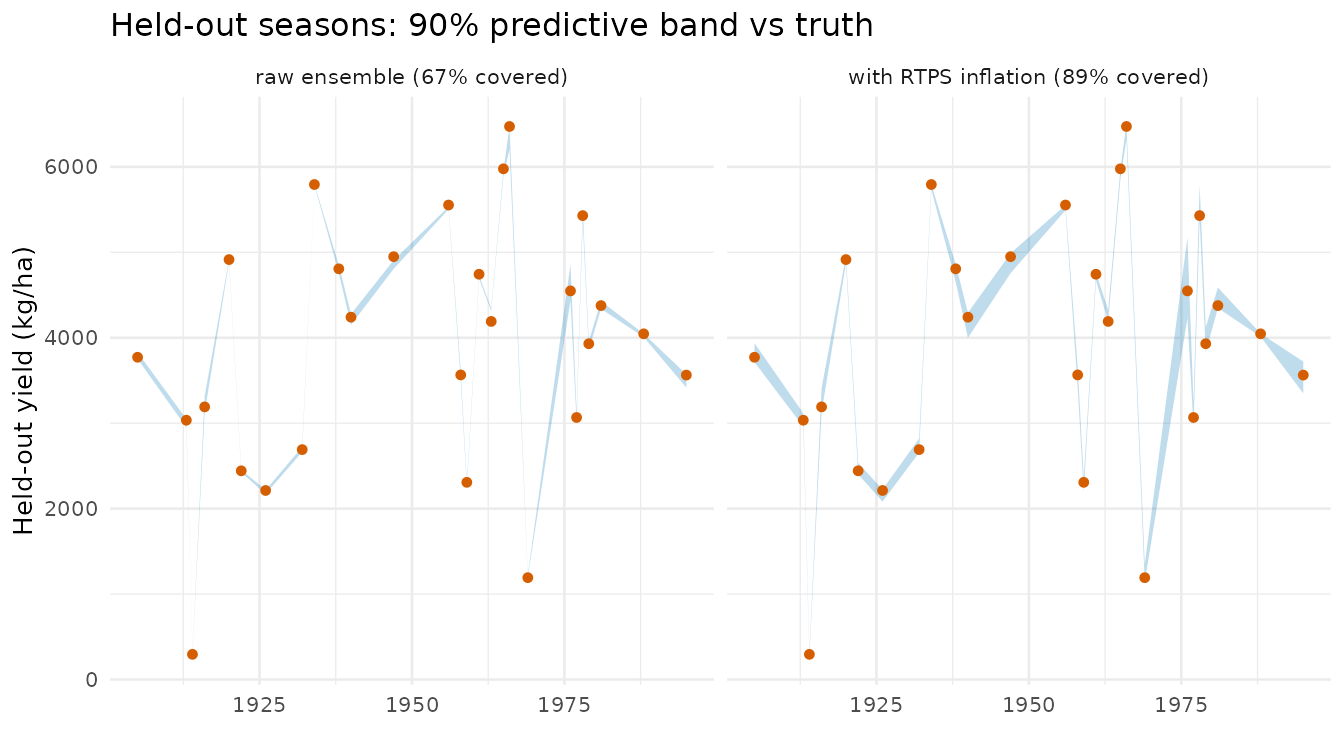

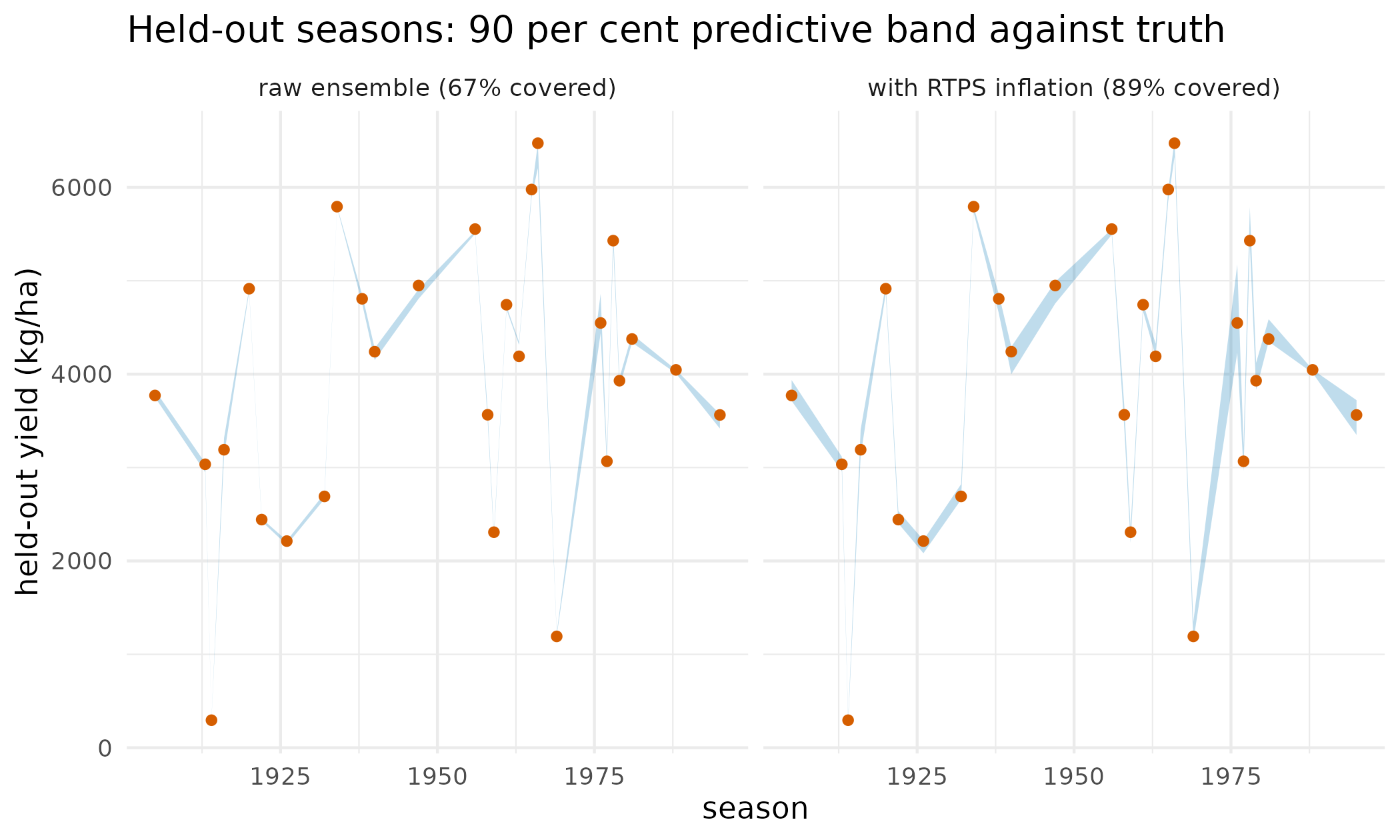

Held-out seasonal yields with the posterior 90 percent predictive band, without and with covariance inflation: the raw band is too narrow and misses several points, the inflated band covers more of them.

The raw 90% band covers well under 90% of the held-out truth – the finite-ensemble under-dispersion an iterative smoother suffers. PESTO ships the remedy: covariance inflation (and, for spatial problems, localisation), documented in the Inflation and localisation vignette. Re-running with RTPS inflation widens the posterior and lifts coverage toward nominal. Inflation strength is problem-dependent, so report coverage and tune it rather than trusting a default blindly.

The ensemble manifest

A calibrated run emits a portable, hash-verified pesto_ensemble_manifest, so a downstream tool can validate and reuse the posterior without re-running APSIM:

man <- as_manifest(R$fit)
class(man)
#> [1] "PESTO::pesto_ensemble_manifest" "S7_object"
man@method
#> [1] "ies_callback"
man@schema_version
#> [1] "1.1.0"

Part 2 – calibration to real observed data

Part 1 proved correctness against a known truth. Part 2 confronts real field observations: the obsWheat dataset shipped with the apsimx package (Miguez 2025) – ten dates of measured wheat above-ground biomass over a 2016–2017 season, with Ames.met weather. There is no known truth here, so the test is different: does the calibrated model fit the observations and predict held-out ones, and does PESTO agree with an independent calibrator?

We calibrate the two genuinely uncertain physiological parameters of the bundled Wheat-opt-ex.apsimx model – radiation-use efficiency (RUE) and the cultivar BasePhyllochron (phenology) – the same parameters, model, and data that the apsimx package’s own optim_apsimx() example optimises. That gives an independent cross-check: PESTO’s ensemble posterior against apsimx’s point optimum.

prd <- system.file("extdata", "apsim_case_study",
                   "apsim_realdata_result.rds", package = "PESTO")
if (!nzchar(prd)) {
  prd <- file.path("..", "inst", "extdata", "apsim_case_study",
                   "apsim_realdata_result.rds")
}
P <- readRDS(prd); P_spec <- P$spec; P_pnm <- P$pnm
po <- data.table(date = P$obs_dates, biomass = P$y_obs,
                 set = ifelse(seq_along(P$y_obs) %in% P$cal_idx,
                              "calibration", "held-out"))
ggplot(po, aes(date, biomass, colour = set)) +
  geom_line(colour = "grey70", linewidth = 0.3) + geom_point(size = 2) +
  scale_colour_manual(values = c(calibration = PAL[1], `held-out` = PAL[2])) +
  labs(x = NULL, y = "Observed biomass (g/m2)", colour = NULL,
       title = "obsWheat: real measured above-ground biomass") +
  theme_minimal(base_size = 11)

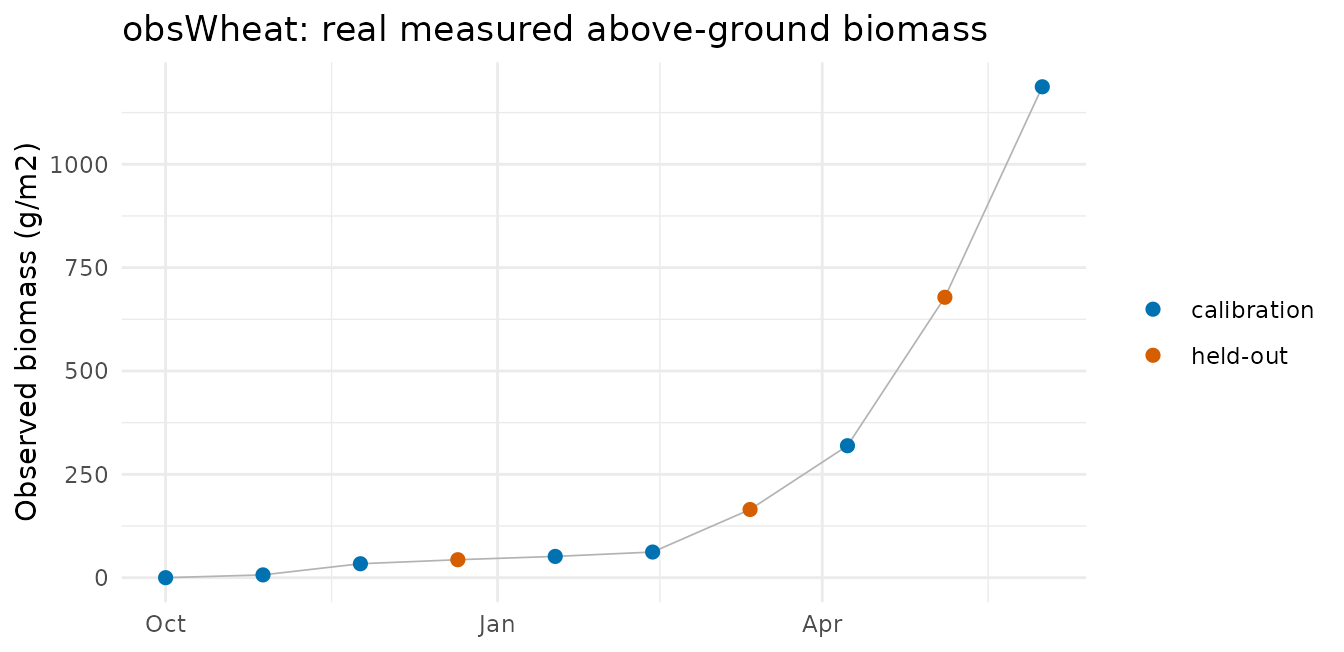

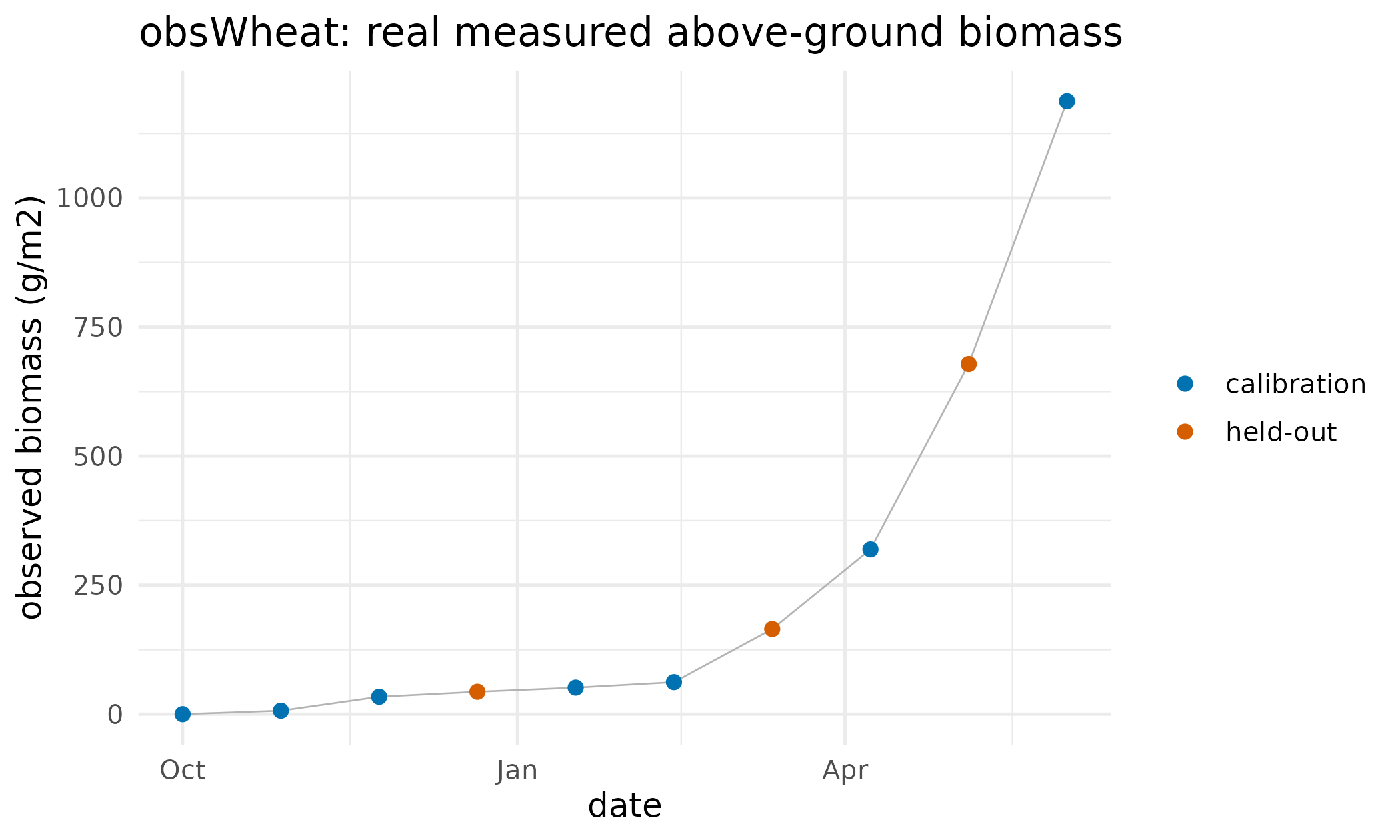

Observed wheat above-ground biomass at ten dates through the season, with calibration and held-out validation dates distinguished; biomass rises from zero to roughly 1200 g/m2.

Estimates, with an independent cross-check

est <- rbindlist(lapply(P_pnm, function(p) {
  q <- stats::quantile(P$post[, p], c(.05, .5, .95), na.rm = TRUE)
  data.table(Parameter = p, Role = P_spec[[p]]$role,
             `PESTO mean` = round(mean(P$post[, p], na.rm = TRUE), 2),
             `5%` = round(q[1], 2), `95%` = round(q[3], 2),
             `apsimx optimum` = P_spec[[p]]$apsimx_opt,
             Default = P_spec[[p]]$default)
}))
knitr::kable(est, caption = paste(
  "PESTO posterior vs apsimx optim_apsimx() optimum (independent calibrator)",
  "and the model default."))
PESTO posterior vs apsimx optim_apsimx() optimum (independent calibrator) and the model default.
Parameter Role PESTO mean 5% 95% apsimx optimum Default
RUE radiation use efficiency 1.71 1.48 2.15 1.5 1.2
Phyllochron phenology (phyllochron) 100.05 77.26 119.50 87.6 120.0

For both parameters the apsimx point optimum lies inside PESTO’s 90% credible interval, and both calibrators move the same direction away from the default (higher RUE, lower BasePhyllochron). Two independent calibration engines agree – and PESTO additionally reports the uncertainty the point optimiser does not.

qb <- function(i) stats::quantile(P$obs_ensemble[, i], c(.05, .95), na.rm = TRUE)
fitb <- data.table(
  date = P$obs_dates, obs = P$y_obs,
  lo = vapply(seq_along(P$obs_dates), function(i) qb(i)[1], 0),
  hi = vapply(seq_along(P$obs_dates), function(i) qb(i)[2], 0),
  set = ifelse(seq_along(P$y_obs) %in% P$cal_idx, "calibration", "held-out"))
ggplot(fitb, aes(date)) +
  geom_ribbon(aes(ymin = lo, ymax = hi), fill = PAL[1], alpha = 0.25) +
  geom_point(aes(y = obs, shape = set), colour = PAL[2], size = 2) +
  scale_shape_manual(values = c(calibration = 16, `held-out` = 1)) +
  labs(x = NULL, y = "Biomass (g/m2)", shape = NULL,
       title = "Posterior predictive band vs observed biomass") +
  theme_minimal(base_size = 11)

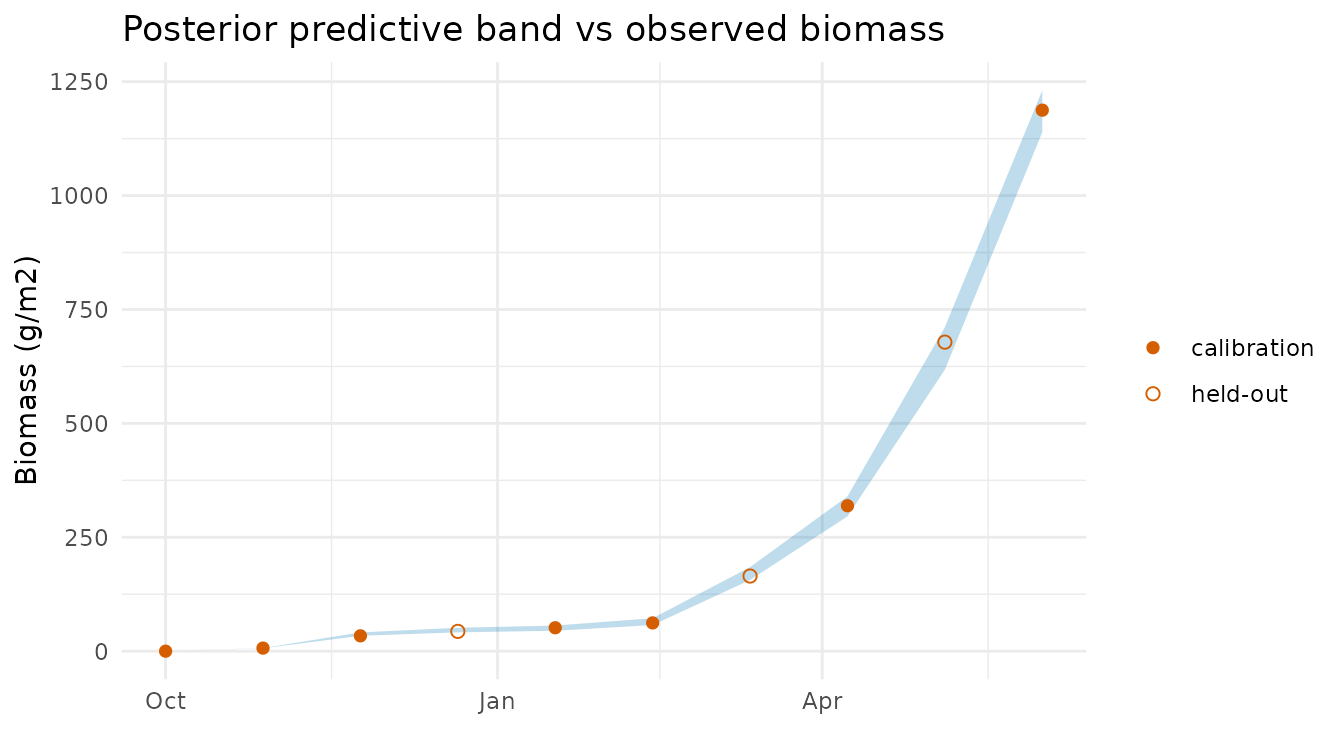

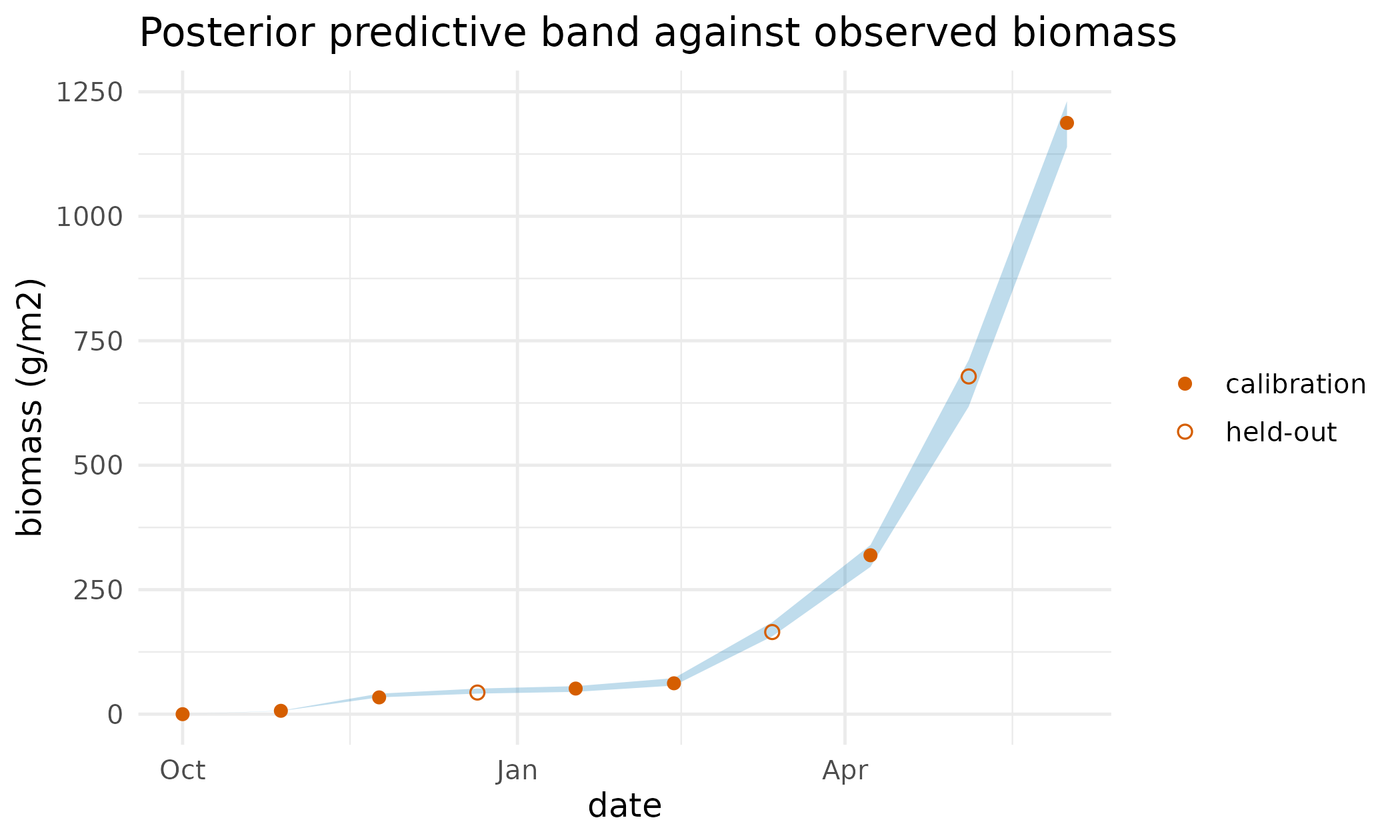

Posterior predictive 90 percent band for biomass at each observation date with the observed points overlaid; the band tracks the observations across the season and brackets the held-out points.

The held-out dates (excluded from the fit) fall within the posterior predictive band: out-of-sample coverage is 100% of the 3 held-out points. (With so few held-out points this is indicative, not a precise coverage estimate.)

Reproducibility

Every number here is reproducible. The driver (apsim_wheat_calibration.R, shipped under case_studies/) hardcodes no machine paths: point it at an APSIM install with the PESTO_APSIM_EXE / PESTO_APSIM_EXAMPLES environment variables (and PESTO_DOTNET_ROOT if the build needs an explicit runtime), then:

# Part 1 (synthetic-truth recovery):
source(system.file("case_studies/apsim_wheat_calibration.R", package = "PESTO"))
# Part 2 (real obsWheat data):
source(system.file("case_studies/apsim_wheat_realdata.R", package = "PESTO"))

Provenance: APSIM 2026.5.8046.0, apsimx 2.8.235, PESTO 0.8.0.9000, seed 20260628, generated 2026-06-28. Part 2 uses the obsWheat data and Wheat-opt-ex.apsimx model shipped with apsimx.

What this study shows

  • Strong parameters recovered. Soil runoff and fertiliser nitrogen are recovered with the truth inside the 90% credible interval.
  • Weak parameter flagged, not faked. Sowing depth is poorly identifiable from yield alone; the posterior stays broad and the identifiability diagnostic says so.
  • Raw intervals under-cover. Out-of-sample coverage is below nominal until inflation is applied – a real property of finite-ensemble smoothers, surfaced rather than hidden.
  • From synthetic to real (Part 2). On real obsWheat biomass, PESTO calibrates the physiological parameters (RUE, phenology), fits the observed season, and predicts held-out dates – and its posterior brackets the independent apsimx optimiser’s optimum for both parameters, adding the uncertainty the point optimiser does not report.

References

  • Miguez, F. (2025). apsimx: Inspect, Read, Edit and Run APSIM Next Generation and APSIM Classic. R package version 2.8.235. https://doi.org/10.32614/CRAN.package.apsimx (source of the obsWheat data and Wheat-opt-ex.apsimx model used in Part 2).
  • Holzworth, D. et al. (2014). APSIM – evolution towards a new generation of agricultural systems simulation. Environmental Modelling & Software 62, 327–350. ```
