Calibrating APSIM with PESTO (in-process callback)

PESTO was built to calibrate process-based simulators from R, and its flagship partner is APSIM – the agricultural-systems model – coupled through the apsimx package by apsim_callback(). This vignette shows that coupling, the in-process callback driver behind it, and how the same pattern serves any other simulator.

Why a callback driver?

pesto_ies() shells out to the pestpp-ies binary, which writes and reads .pst / ensemble / observation files between every realisation. For an in-process R forward model – an apsimx wrapper for APSIM, a Python bridge, or a fast synthetic test problem – that file round-trip is pure overhead. pesto_ies_callback() keeps the same C++ ensemble kernel (ensemble_solution(), Chen & Oliver 2013) but drives the outer loop in R, calling the forward model in-process. For APSIM this is the difference between re-reading an .apsimx file every realisation and holding the model in memory across the whole ensemble.

This document shows:

1. The driver on a synthetic linear-Gaussian problem (recovers truth).
2. The typed forward-model contract (pesto_forward_model()) shared by both adapter modes, including parallel, fault-tolerant evaluation.
3. The shape of the apsim_callback() adapter for apsimx (run block is disabled – needs APSIM installed).
4. Multi-fidelity calibration: a cheap surrogate ramped to an expensive model through a fidelity_schedule.

A synthetic recovery example

library(PESTO)

npar  <- 4L
nobs  <- 8L
nreal <- 120L
sigma <- 0.05

G          <- matrix(rnorm(nobs * npar), nobs, npar)
theta_true <- c(1.0, -0.5, 2.0, 0.25)
y          <- as.numeric(G %*% theta_true) + rnorm(nobs, sd = sigma)
names(y)   <- paste0("o", seq_len(nobs))

# Forward model: any function that takes an (nreal x npar) matrix and
# returns an (nreal x nobs) matrix.
forward <- function(theta) theta %*% t(G)

prior <- matrix(rnorm(nreal * npar), nreal, npar,
                dimnames = list(NULL, paste0("p", seq_len(npar))))

Run six IES iterations with a single lambda:

fit <- pesto_ies_callback(
  forward_model  = forward,
  prior_ensemble = prior,
  obs            = y,
  obs_sd         = sigma,
  noptmax        = 6L,
  lambda         = 1.0,
  verbose        = FALSE
)

Diagnostics:

prior_rmse <- sqrt(mean((colMeans(prior) - theta_true)^2))
post_mean  <- colMeans(as.matrix(fit$par_ensemble[, -1L]))
post_rmse  <- sqrt(mean((post_mean - theta_true)^2))

cat(sprintf("prior RMSE: %.4f\n", prior_rmse))
#> prior RMSE: 1.1300
cat(sprintf("posterior RMSE: %.4f\n", post_rmse))
#> posterior RMSE: 0.0232

mean_phi <- vapply(fit$iterations, `[[`, numeric(1L), "mean_phi")
print(mean_phi)
#> [1] 17452.123014     1.534500     1.533925     1.533362     1.532812
#> [6]     1.532273

Posterior RMSE should be a small fraction of prior RMSE, and mean phi should decrease across iterations.

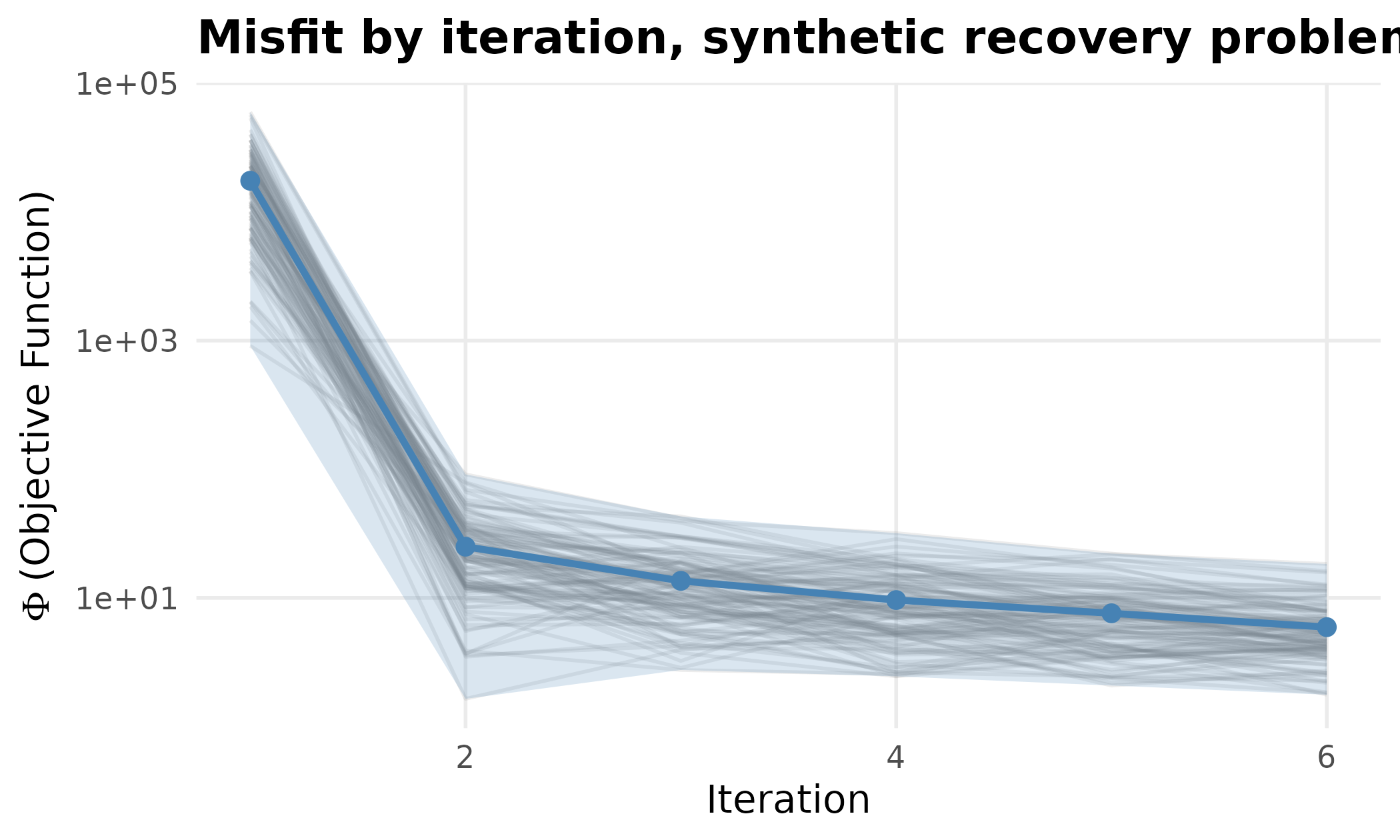

The full per-realisation phi trajectory:

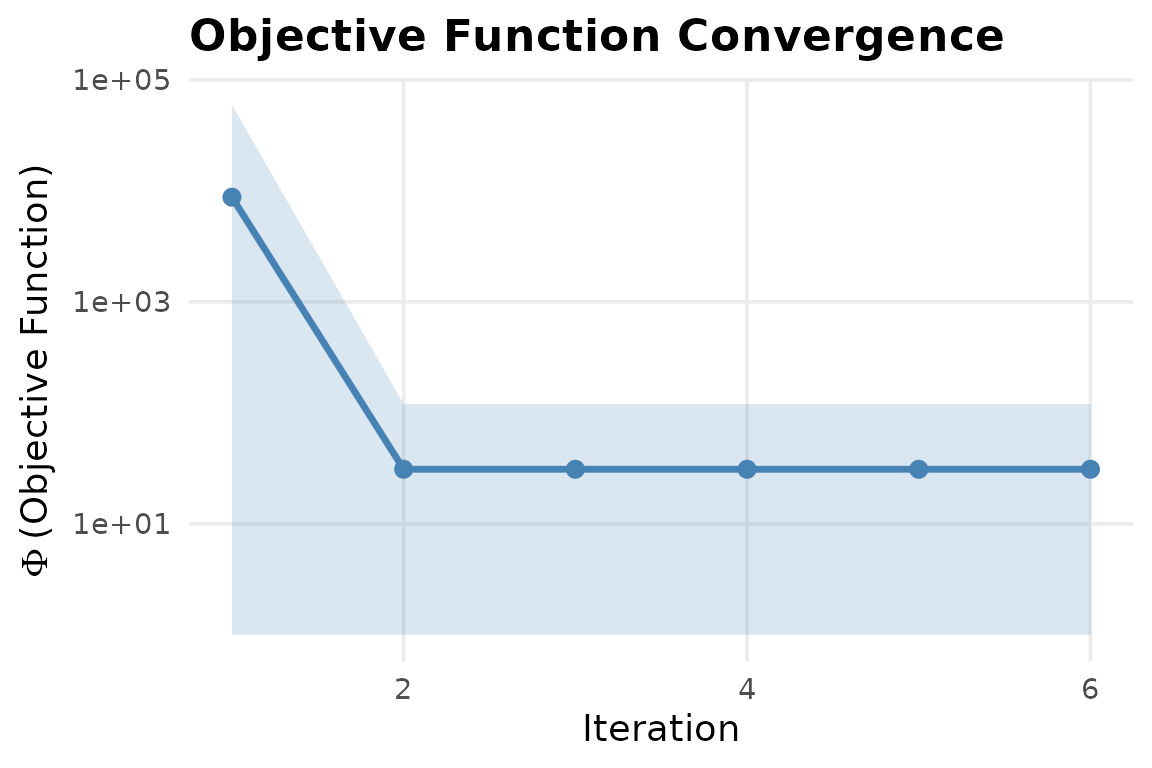

plot_phi(fit)
#> Warning in melt.data.table(phi_dt, id.vars = iter_col, measure.vars = phi_cols,
#> : 'measure.vars' [realisation, phi] are not all of the same type. By order of
#> hierarchy, the molten data value column will be of type 'double'. All measure
#> variables not of type 'double' will be coerced too. Check DETAILS in
#> ?melt.data.table for more on coercion.

The forward-model contract

A bare function(theta) -> obs is the quickest way in, but it carries no metadata: the driver cannot know the output dimension ahead of time, cannot run realisations in parallel, and cannot express a failure budget. pesto_forward_model() wraps the same callable in a typed contract that does. It is the single object both the native-callback driver here and the classic .pst path (pesto_ies()) are built to honour, so a forward model travels between modes unchanged.

fm <- pesto_forward_model(
  fn          = forward,
  n_obs       = nobs,
  param_names = paste0("p", seq_len(npar)),
  on_failure  = "na"
)

# A contract object is evaluated directly with pesto_evaluate(); the
# returned matrix carries the per-realisation failure count.
sim <- pesto_evaluate(fm, prior)
cat(sprintf("evaluated %d x %d; failures: %d\n",
            nrow(sim), ncol(sim), attr(sim, "n_failures")))
#> evaluated 120 x 8; failures: 0

# Passing the contract object to the driver is equivalent to passing the
# bare function -- the bare form is auto-wrapped internally.
fit_typed <- pesto_ies_callback(fm, prior, y, sigma,
                                noptmax = 6L, verbose = FALSE)
identical(
  as.matrix(fit_typed$par_ensemble[, -1L]),
  as.matrix(fit$par_ensemble[, -1L])
)
#> [1] TRUE

Parallel, fault-tolerant ensembles

For an expensive forward model – an APSIM ensemble especially – the realisations within one iteration are embarrassingly parallel. Build the contract with parallel = "multicore" and the evaluation engine dispatches rows across forked workers via parallel::mclapply(). For reproducible draws, set an "L'Ecuyer-CMRG" RNG first; each realisation then receives an independent stream.

RNGkind("L'Ecuyer-CMRG")
set.seed(42L)

fm_par <- pesto_forward_model(
  fn       = forward,
  n_obs    = nobs,
  parallel = "multicore",
  n_cores  = 4L
)
fit_par <- pesto_ies_callback(fm_par, prior, y, sigma, noptmax = 6L)

A custom map_fn (any lapply-shaped function) is the escape hatch for cross-platform or cluster backends, for example future.apply::future_lapply or a mirai map. Failures are governed by on_failure ("na" tolerates, "stop" aborts) and by max_fail_frac, which aborts once the fraction of failed realisations in any single evaluation exceeds the budget – a guardrail against a silently collapsing ensemble.

Guard: calibrate to field-realistic uncertainty, not the mean’s standard error

The single most consequential number you hand pesto_ies_callback() is obs_sd – the observation standard deviation, which sets the IES weights w = 1/\sigma_{\mathrm{obs}}. It is also the easiest to get wrong, in a way that fails silently. The failure mode is over-determination: conditioning the ensemble on a likelihood that is far tighter than the data deserve. The smoother then drives every realisation onto the same point, the posterior spread collapses, and the run reports an answer with a credible interval far too narrow to be credible – confident and wrong.

The usual route into this trap is statistical, not a typo. Suppose each target observation is itself the mean of m field replicates. The replicate spread – the genuine measurement-plus-process noise a single modelled value must match – is \sigma. The standard error of that mean is \sigma/\sqrt{m}, which is smaller by a factor of \sqrt{m} and shrinks further as you average more plots. Passing the standard error as obs_sd tells the smoother the data pin the model roughly \sqrt{m} times more sharply than they really do. The forward model cannot be that right, so the ensemble has nowhere to go but onto a single collapsed point.

The contrast below runs the same synthetic problem twice. The first call passes the field-realistic replicate spread sigma; the second passes the standard error of a mean over m = 40 replicates, about eight times too small.

m      <- 40L
obs_se <- sigma / sqrt(m)   # the standard error of a 40-replicate mean

fit_ok <- pesto_ies_callback(
  forward, prior, y,
  obs_sd  = sigma,          # field-realistic replicate spread
  noptmax = 6L, verbose = FALSE
)

fit_collapsed <- pesto_ies_callback(
  forward, prior, y,
  obs_sd  = obs_se,         # the over-precise likelihood -- the trap
  noptmax = 6L, verbose = FALSE
)

The collapse does not announce itself in the posterior mean. On this linear-Gaussian toy both runs recover the truth to three figures. It announces itself in the posterior spread and in whether the credible interval still covers the truth:

spread <- function(fit) {
  mean(apply(as.matrix(fit$par_ensemble[, -1L]), 2L, sd))
}

coverage_90 <- function(fit, truth) {
  pe <- as.matrix(fit$par_ensemble[, -1L])
  lo <- apply(pe, 2L, quantile, 0.05)
  hi <- apply(pe, 2L, quantile, 0.95)
  mean(truth >= lo & truth <= hi)   # fraction of params inside the band
}

data.frame(
  obs_sd          = c(sigma, obs_se),
  case            = c("field-realistic", "over-precise (SE of mean)"),
  mean_post_sd    = c(spread(fit_ok), spread(fit_collapsed)),
  coverage_90_pct = 100 * c(coverage_90(fit_ok, theta_true),
                            coverage_90(fit_collapsed, theta_true))
)
#>        obs_sd                      case mean_post_sd coverage_90_pct
#> 1 0.050000000           field-realistic 3.560357e-03              50
#> 2 0.007905694 over-precise (SE of mean) 9.266982e-05               0

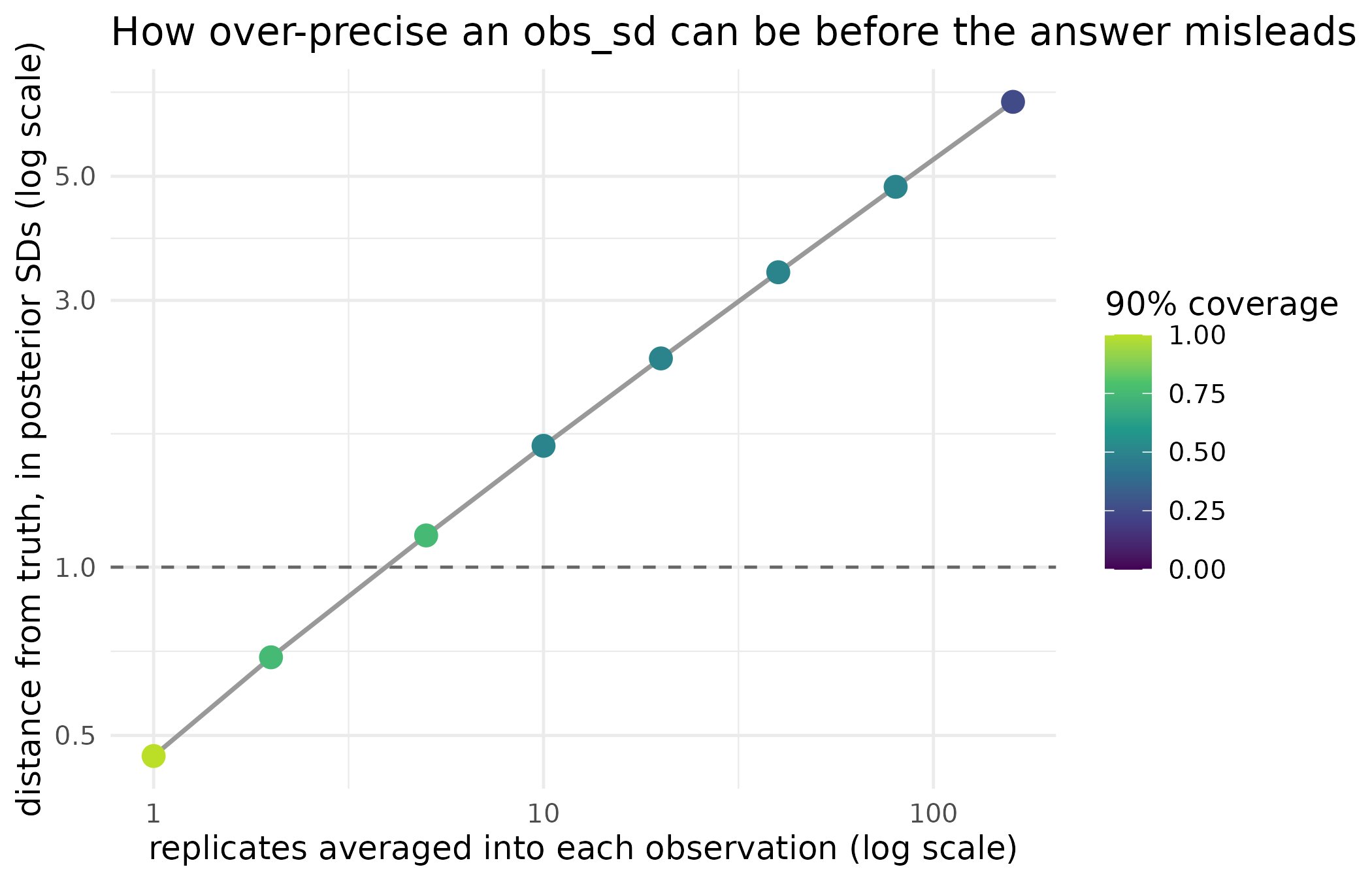

The over-precise run’s posterior spread is a small fraction of the well-specified run’s, and its 90 per-cent credible band has stopped covering the truth entirely. The ensemble is confident and wrong.

PESTO records the collapse directly. ensemble_spread_ess() – the spectral participation ratio of the parameter anomaly covariance, the effective number of variance-carrying directions – is logged on every iteration as spread_ess and as the ratio spread_ess_ratio (relative to the ensemble size). A ratio that falls steeply toward zero across iterations is the diagnostic signature of an ensemble draining its spread:

ess_ratio <- function(fit) {
  vapply(fit$iterations, `[[`, numeric(1L), "spread_ess_ratio")
}

rbind(
  `field-realistic` = round(ess_ratio(fit_ok), 3),
  `over-precise`    = round(ess_ratio(fit_collapsed), 3)
)
#>                  [,1]  [,2]  [,3]  [,4]  [,5]  [,6]
#> field-realistic 0.341 0.342 0.342 0.343 0.344 0.345
#> over-precise    0.340 0.340 0.340 0.340 0.340 0.340

The fix is to set obs_sd to the uncertainty the modelled value must actually reproduce – the replicate-level measurement-plus-process spread, never the standard error of an average:

• Use the replicate standard deviation \sigma, not \sigma/\sqrt{m}, when the target is a mean over m measurements.
• Fold structural model-discrepancy into obs_sd – the forward model is an approximation, and the likelihood should not pretend it matches reality more tightly than the model can.
• When in genuine doubt, err wide. An over-wide obs_sd leaves spread on the table and merely under-uses the data; an over-narrow one destroys the ensemble and reports false confidence.

When over-determination is unavoidable – many observations, few realisations – the covariance inflation and localisation countermeasures (vignette("inflation-localisation")) actively replenish the collapsing spread rather than only diagnosing it. A correctly specified obs_sd is the first line of defence, those countermeasures the second.

Driving APSIM through apsim_callback()

The adapter wraps apsimx so each realisation gets its own working copy of an APSIM template, parameter edits per param_map, a run, and an extraction step. The signature returned matches what pesto_ies_callback() expects.

library(apsimx)   # >= 2.7.0 from CRAN
# Requires a working APSIM Next Gen installation.

forward <- apsim_callback(
  template  = "wheat_wagga.apsimx",
  param_map = list(
    RUE = "Wheat.Leaf.Photosynthesis.RUE.FixedValue",
    CN2 = "Soil.SoilWater.CN2Bare"
  ),
  output_extractor = function(sim) {
    # sim is the data.frame of report-table variables.
    as.numeric(sim$Wheat.Grain.Total.Wt)
  }
)

prior <- cbind(
  RUE = runif(40, 1.0, 2.0),
  CN2 = runif(40, 60,  90)
)

fit <- pesto_ies_callback(
  forward_model  = forward,
  prior_ensemble = prior,
  obs            = c(y_2018 = 4500, y_2019 = 5200, y_2020 = 4900),
  obs_sd         = 250,
  noptmax        = 4L
)

summary(fit$par_ensemble)

Failure handling

Per-realisation APSIM crashes (corrupt config, solver divergence, missing report variable) are caught by the adapter and emerge as NA rows. pesto_ies_callback()’s on_failure = "na" (default) carries those realisations forward unchanged so the ensemble survives partial failures. Setting on_failure = "stop" aborts as soon as one row is missing.

Concurrency

The apsim_callback() closure writes each realisation to its own uniquely-named working file, so it is safe to evaluate in parallel: wrap it in a pesto_forward_model(parallel = "multicore") exactly as above and the ensemble runs across forked workers, each invoking APSIM on its own input. Start with a modest n_cores – apsimx’s own thread-safety under heavy ensemble load has not been independently characterised. For pure-R synthetic models the serial loop is already fast enough that the overhead is dominated by ensemble_solution() itself.

Multi-fidelity calibration

Process-based crop models expose a cost/accuracy dial: a daily time-step with a lite soil profile is cheap; a sub-daily step with the full profile is expensive. pesto_multifidelity_model() makes that dial first-class. It bundles an ordered stack of fidelity levels – cheapest first – and the IES driver picks a level per iteration through a fidelity_schedule, so early iterations explore cheaply and late iterations sharpen against the expensive truth. The final ensemble is always refreshed at the highest fidelity.

# Cheap level: the linear model with a small systematic bias.
# Expensive level: the unbiased truth.
cheap_fn     <- function(theta) theta %*% t(G) + 0.30
expensive_fn <- forward

mf <- pesto_multifidelity_model(
  levels = list(
    pesto_forward_model(fn = cheap_fn,     n_obs = nobs, fidelity = 0L),
    pesto_forward_model(fn = expensive_fn, n_obs = nobs, fidelity = 1L)
  ),
  costs = c(1, 25)   # the expensive level is ~25x dearer per run
)

# Ramp: two cheap iterations, then four expensive ones.
fit_mf <- pesto_ies_callback(
  forward_model     = mf,
  prior_ensemble    = prior,
  obs               = y,
  obs_sd            = sigma,
  noptmax           = 6L,
  fidelity_schedule = c(0L, 0L, 1L, 1L, 1L, 1L),
  verbose           = FALSE
)

mf_rmse <- sqrt(mean(
  (colMeans(as.matrix(fit_mf$par_ensemble[, -1L])) - theta_true)^2
))
cat(sprintf("multi-fidelity posterior RMSE: %.4f\n", mf_rmse))
#> multi-fidelity posterior RMSE: 0.2592

When a cheap level is run over the whole ensemble and the expensive level over only a subset, mf_control_variate() lifts the cheap outputs toward the expensive ones with the variance-minimising affine correction – the plug-in primitive for a surrogate cascade:

sub      <- 1:20
low_all  <- pesto_evaluate(mf, prior, level = 0L)
low_sub  <- low_all[sub, , drop = FALSE]
high_sub <- pesto_evaluate(mf, prior[sub, , drop = FALSE], level = 1L)

corrected <- mf_control_variate(low_all, high_sub, low_sub)
cat(sprintf("mean |cheap - corrected| over the ensemble: %.4f\n",
            mean(abs(low_all - corrected))))
#> mean |cheap - corrected| over the ensemble: 0.3000

ODE / compartmental forward-model templates

Not every forward model is a simulator behind an executable. A very large class – crop growth, epidemic dynamics, nutrient or solute transport, pharmacokinetics – is a small system of ordinary differential equations integrated forward in time, with the observation vector read off the state trajectory. PESTO ships these as ready-to-use templates that return the same typed pesto_forward_model() as everything above, so they plug straight into the IES driver, the multi-fidelity stack, and the manifest emitter. Integration is a self-contained fixed-step RK4 by default (no extra dependency); a solver = "desolve" path delegates to the deSolve package for stiff systems.

The generic builder is ode_forward_model(): supply the derivative function function(t, y, theta) -> dydt, the initial state, the time grid, and which theta columns the model consumes. Two specialisations come pre-built. crop_growth_forward_model() is the logistic dry-matter accumulation curve dB/dt = r B (1 - B / b_max) – the canonical sigmoid description of seasonal biomass, calibrating r, b_max, and b0 against an observed biomass-over-time series.

times <- seq(0, 120, by = 15)
crop  <- crop_growth_forward_model(times = times)

# Simulate a biomass series at a known parameter, then add field noise.
theta_crop <- c(r = 0.06, b_max = 1400, b0 = 20)
biomass    <- as.numeric(pesto_evaluate(
  crop, matrix(theta_crop, nrow = 1L, dimnames = list(NULL, names(theta_crop)))
))
y_crop        <- biomass + rnorm(length(biomass), sd = 20)
names(y_crop) <- paste0("t", seq_along(y_crop))

# Invert: a broad prior over the three growth parameters.
prior_crop <- cbind(
  r     = runif(120L, 0.02, 0.12),
  b_max = runif(120L, 900, 2000),
  b0    = runif(120L, 5, 60)
)
fit_crop <- pesto_ies_callback(crop, prior_crop, y_crop, obs_sd = 20,
                               noptmax = 8L, verbose = FALSE)
post_crop <- colMeans(as.matrix(fit_crop$par_ensemble[, -1L]))[names(theta_crop)]
rbind(truth = theta_crop, posterior = round(post_crop, 3))
#>               r    b_max     b0
#> truth     0.060 1400.000 20.000
#> posterior 0.063 1371.492 18.251

seir_forward_model() is the closed-population Susceptible-Exposed-Infectious-Recovered epidemic model, calibrating the transmission, latency, and recovery rates beta, sigma, and gamma against an observed infectious-prevalence curve. The reproduction number R_0 = \beta / \gamma is the recoverable summary an outbreak curve identifies most sharply:

days <- seq(0, 60, by = 5)
seir <- seir_forward_model(times = days, n_pop = 1000, i0 = 1)

theta_seir <- c(beta = 0.6, sigma = 0.2, gamma = 0.1)
prevalence <- as.numeric(pesto_evaluate(
  seir, matrix(theta_seir, nrow = 1L, dimnames = list(NULL, names(theta_seir)))
))
y_seir        <- prevalence + rnorm(length(prevalence), sd = 3)
names(y_seir) <- paste0("d", seq_along(y_seir))

prior_seir <- cbind(
  beta  = runif(200L, 0.3, 0.9),
  sigma = runif(200L, 0.1, 0.4),
  gamma = runif(200L, 0.05, 0.2)
)
fit_seir  <- pesto_ies_callback(seir, prior_seir, y_seir, obs_sd = 3,
                                noptmax = 10L, verbose = FALSE)
post_seir <- colMeans(as.matrix(fit_seir$par_ensemble[, -1L]))[names(theta_seir)]
cat(sprintf("R0 truth = %.1f, R0 posterior = %.2f\n",
            theta_seir[["beta"]] / theta_seir[["gamma"]],
            post_seir[["beta"]] / post_seir[["gamma"]]))
#> R0 truth = 6.0, R0 posterior = 5.54

Because both templates return a pesto_forward_model(), the cheap-coarse / fine-grid fidelity trick from the previous section applies verbatim: build one template at a coarse n_steps and one at a fine n_steps, stack them in a pesto_multifidelity_model(), and ramp the integration resolution across IES iterations.

Sequential (filter-mode) assimilation

pesto_ies_callback() is a smoother: it assimilates every observation in one batch. For an in-season setting – where a growing season’s observations arrive over time and you want an updated parameter posterior as the season progresses, not only at harvest – pesto_ies_filter() is the filter. It assimilates time-ordered observation windows one after another against the same static calibration parameters; each window’s posterior becomes the next window’s prior, so information accrues and the posterior tightens window by window.

# Reuse the synthetic problem above; split the nobs observations into
# three temporal windows (e.g. early / mid / late season).
windows <- list(1:3, 4:6, 7:8)

fit_seq <- pesto_ies_filter(
  forward_model  = forward,
  prior_ensemble = prior,
  obs            = y,
  obs_sd         = sigma,
  windows        = windows,
  verbose        = FALSE
)

# The per-window history carries the per-parameter ensemble sd; its mean
# should fall window over window as more of the season is assimilated.
sd_trace <- vapply(fit_seq$windows, function(w) mean(w$par_sd), numeric(1))
data.frame(
  window      = seq_along(sd_trace),
  obs_assim   = vapply(fit_seq$windows, function(w) length(w$obs_indices),
                       integer(1)),
  mean_par_sd = round(sd_trace, 4)
)
#>   window obs_assim mean_par_sd
#> 1      1         3      0.4007
#> 2      2         3      0.0180
#> 3      3         2      0.0152

The posterior at the final window matches what the batch smoother would recover, but you also have the intermediate posteriors – the value of the filter is the trajectory, not just the endpoint. A multi-fidelity stack plugs in through fidelity_schedule (one level per window: run cheap early, sharpen late), and the result wraps into the same manifest contract via as_manifest() (tagged method = "ies_filter").

When to prefer pesto_ies() instead

Use the classic .pst path when:

• Your forward model lives behind a non-R executable that PEST++ can drive directly via its template/instruction-file mechanism.
• You need full bit-for-bit compatibility with pestpp-ies behaviour (e.g. for cross-validating against an existing PEST++ workflow).
• You depend on pestpp-ies-specific features not yet exposed by the R driver (full lambda line-search, regularisation modes, Tikhonov priors).

Otherwise the callback driver is faster to iterate, easier to debug, and avoids per-realisation file I/O entirely.

Reproducibility

sessionInfo()
#> R version 4.6.1 (2026-06-24)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.4 LTS
#>
#> Matrix products: default
#> BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
#> LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0
#>
#> locale:
#>  [1] LC_CTYPE=C.UTF-8       LC_NUMERIC=C           LC_TIME=C.UTF-8
#>  [4] LC_COLLATE=C.UTF-8     LC_MONETARY=C.UTF-8    LC_MESSAGES=C.UTF-8
#>  [7] LC_PAPER=C.UTF-8       LC_NAME=C              LC_ADDRESS=C
#> [10] LC_TELEPHONE=C         LC_MEASUREMENT=C.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats     graphics  grDevices utils     datasets  methods   base
#>
#> other attached packages:
#> [1] PESTO_0.10.1
#>
#> loaded via a namespace (and not attached):
#>  [1] vctrs_0.7.3        cli_3.6.6          knitr_1.51         rlang_1.3.0
#>  [5] xfun_0.60          otel_0.2.0         S7_0.2.2           textshaping_1.0.5
#>  [9] jsonlite_2.0.0     data.table_1.18.4  labeling_0.4.3     glue_1.8.1
#> [13] htmltools_0.5.9    ragg_1.5.2         sass_0.4.10        scales_1.4.0
#> [17] rmarkdown_2.31     grid_4.6.1         evaluate_1.0.5     jquerylib_0.1.4
#> [21] fastmap_1.2.0      yaml_2.3.12        lifecycle_1.0.5    compiler_4.6.1
#> [25] RColorBrewer_1.1-3 fs_2.1.0           Rcpp_1.1.2         farver_2.1.2
#> [29] systemfonts_1.3.2  digest_0.6.39      R6_2.6.1           bslib_0.11.0
#> [33] withr_3.0.3        gtable_0.3.6       tools_4.6.1        pkgdown_2.2.1
#> [37] ggplot2_4.0.3      cachem_1.1.0       desc_1.4.3
